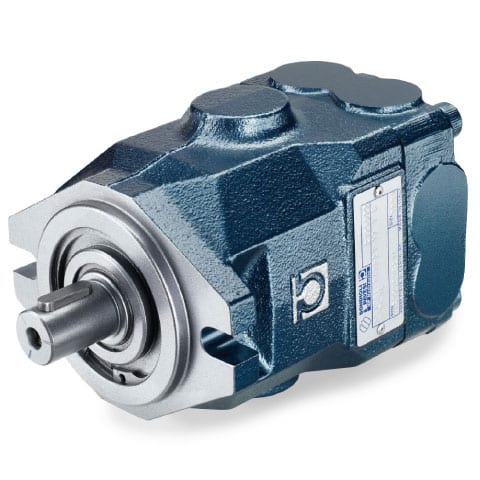

Axial Piston Motors

Axial piston motors can be either a fixed or variable displacement. Variable displacement motors are available with two position hydraulic controls, two position electric control and proportional electric control. Other possible configurations include circuits with built-in exchange valves and pressure relief valves. Built-in cartridge versions also available for planetary hubs. Fixed motors are stocked locally while variable motors are on indent supply.

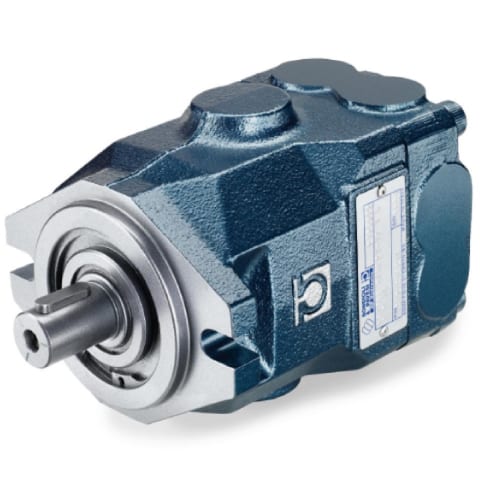

Bondioli 21cc - 37cc

  • 15T Spline Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE A 2 Bolt Mounting Flange
    • Max Pressure (Peak) 350 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 7-8 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF2121A3B3R0021 CC/REVCoupled SidewaysBi-Rotational1" 15 Tooth Spline3/4" BSPPDownloadView options
    M4MF2828A3B3R0028 CC/REVCoupled SidewaysBi-Rotational1" 15 Tooth Spline3/4" BSPPDownloadView options
    M4MF3737A3B3R0037 CC/REVCoupled SidewaysBi-Rotational1" 15 Tooth Spline3/4" BSPPDownloadView options
  • 7/8" Keyed Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE A 2 Bolt Mounting Flange
    • Max Pressure (Peak) 350 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 7-8 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF2121A3B1R0021 CC/REVCoupled SidewaysBi-Rotational7/8" Keyed3/4" BSPPDownloadView options
    M4MF2828A3B1R0028 CC/REVCoupled SidewaysBi-Rotational7/8" Keyed3/4" BSPPDownloadView options
    M4MF3737A3B1R0037 CC/REVCoupled SidewaysBi-Rotational7/8" Keyed3/4" BSPPDownloadView options
  • 1" Keyed Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE A 2 Bolt Mounting Flange
    • Max Pressure (Peak) 350 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 7-8 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF2121A3B2R0021 CC/REVCoupled SidewaysBi-Rotational1" Keyed3/4" BSPPDownloadView options
    M4MF2828A3B2R0028 CC/REVCoupled SidewaysBi-Rotational1" Keyed3/4" BSPPDownloadView options
    M4MF3737A3B2R0037 CC/REVCoupled SidewaysBi-Rotational1" Keyed3/4" BSPPDownloadView options
  • 13T Spline Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE A 2 Bolt Mounting Flange
    • Max Pressure (Peak) 350 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 7-8 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF2121A3B6R0021 CC/REVCoupled SidewaysBi-Rotational7/8" 13 Tooth Spline3/4" BSPPDownloadView options
    M4MF2828A3B6R0028 CC/REVCoupled SidewaysBi-Rotational7/8" 13 Tooth Spline3/4" BSPPDownloadView options
    M4MF3737A3B6R0037 CC/REVCoupled SidewaysBi-Rotational7/8" 13 Tooth Spline3/4" BSPPDownloadView options
  • 11T Spline Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE A 2 Bolt Mounting Flange
    • Max Pressure (Peak) 350 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 7-8 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF2121A3B7R0021 CC/REVCoupled SidewaysBi-Rotational3/4" 11 Tooth Spline3/4" BSPPDownloadView options
    M4MF2828A3B7R0028 CC/REVCoupled SidewaysBi-Rotational3/4" 11 Tooth Spline3/4" BSPPDownloadView options
    M4MF3737A3B7R0037 CC/REVCoupled SidewaysBi-Rotational3/4" 11 Tooth Spline3/4" BSPPDownloadView options

Bondioli 34cc - 64cc

  • 15T Spline Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE B 2 Bolt Mounting Flange
    • Max Pressure (Peak) 400 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 13-14 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF3434A3B3R0034 CC/REVCoupled SidewaysBi-Rotational1" 15 Tooth Spline3/4" BSPPDownloadView options
    M4MF4646A3B3R0046 CC/REVCoupled SidewaysBi-Rotational1" 15 Tooth Spline3/4" BSPPDownloadView options
    M4MF5050A3B3R0050 CC/REVCoupled SidewaysBi-Rotational1" 15 Tooth Spline3/4" BSPPDownloadView options
    M4MF5858A3B3R0058 CC/REVCoupled SidewaysBi-Rotational1" 15 Tooth Spline3/4" BSPPDownloadView options
    M4MF6464A3B3R0064 CC/REVCoupled SidewaysBi-Rotational1" 15 Tooth Spline3/4" BSPPDownloadView options
  • 7/8" Keyed Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE B 2 Bolt Mounting Flange
    • Max Pressure (Peak) 400 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 13-14 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF3434A3B1R0034 CC/REVCoupled SidewaysBi-Rotational7/8" Keyed3/4" BSPPDownloadView options
    M4MF4646A3B1R0046 CC/REVCoupled SidewaysBi-Rotational7/8" Keyed3/4" BSPPDownloadView options
    M4MF5050A3B1R0050 CC/REVCoupled SidewaysBi-Rotational7/8" Keyed3/4" BSPPDownloadView options
    M4MF5858A3B1R0058 CC/REVCoupled SidewaysBi-Rotational7/8" Keyed3/4" BSPPDownloadView options
    M4MF6464A3B1R0064 CC/REVCoupled SidewaysBi-Rotational7/8" Keyed3/4" BSPPDownloadView options
  • 1" Keyed Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE B 2 Bolt Mounting Flange
    • Max Pressure (Peak) 400 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 13-14 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF3434A3B2R0034 CC/REVCoupled SidewaysBi-Rotational1" Keyed3/4" BSPPDownloadView options
    M4MF4646A3B2R0046 CC/REVCoupled SidewaysBi-Rotational1" Keyed3/4" BSPPDownloadView options
    M4MF5050A3B2R0050 CC/REVCoupled SidewaysBi-Rotational1" Keyed3/4" BSPPDownloadView options
    M4MF5858A3B2R0058 CC/REVCoupled SidewaysBi-Rotational1" Keyed3/4" BSPPDownloadView options
    M4MF6464A3B2R0064 CC/REVCoupled SidewaysBi-Rotational1" Keyed3/4" BSPPDownloadView options
  • 30mm Keyed Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE B 2 Bolt Mounting Flange
    • Max Pressure (Peak) 400 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 13-14 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF3434A3B4R0034 CC/REVCoupled SidewaysBi-Rotational30mm Keyed3/4" BSPPDownloadView options
    M4MF4646A3B4R0046 CC/REVCoupled SidewaysBi-Rotational30mm Keyed3/4" BSPPDownloadView options
    M4MF5050A3B4R0050 CC/REVCoupled SidewaysBi-Rotational30mm Keyed3/4" BSPPDownloadView options
    M4MF5858A3B4R0058 CC/REVCoupled SidewaysBi-Rotational30mm Keyed3/4" BSPPDownloadView options
    M4MF6464A3B4R0064 CC/REVCoupled SidewaysBi-Rotational30mm Keyed3/4" BSPPDownloadView options
  • 13T Spline Shaft Piston Motors

    Bondioli Axial Fixed Displacement
    • SAE B 2 Bolt Mounting Flange
    • Max Pressure (Peak) 400 BAR
    • Speed Range 500-3600 RPM
    • Max Case Pressure 2 BAR
    • Weight 13-14 kgs
    Model Code DisplacementPort LocationRotationOutput ShaftPortsSpec SheetOptions
    M4MF3434A3B6R0034 CC/REVCoupled SidewaysBi-Rotational7/8" 13 Tooth Spline3/4" BSPPDownloadView options
    M4MF4646A3B6R0046 CC/REVCoupled SidewaysBi-Rotational7/8" 13 Tooth Spline3/4" BSPPDownloadView options
    M4MF5050A3B6R0050 CC/REVCoupled SidewaysBi-Rotational7/8" 13 Tooth Spline3/4" BSPPDownloadView options
    M4MF5858A3B6R0058 CC/REVCoupled SidewaysBi-Rotational7/8" 13 Tooth Spline3/4" BSPPDownloadView options
    M4MF6464A3B6R0064 CC/REVCoupled SidewaysBi-Rotational7/8" 13 Tooth Spline3/4" BSPPDownloadView options
