Our Products

Mobile Valves

Our range of inline mount valves are sourced from Europe and America and provide the essential requirements of any hydraulic system. Features include electronic proportional control, flow division valves, relief valves, overcentre valves and much more. We even supply a range of cartridge valves from Deltrol America to supplement our well-balanced stock holding.

Monoblock Valves

  • 80lpm Electric Control

    Akon AMV70 Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Relief Pre-Set to 180 BAR
    • 30 BAR Max Tank Pressure
    • Coil IP65 Rated
    Model Code Flow RatePressurePortingVoltageDescriptionSpec SheetOptions
    AMV701B-SC42*(Z)ST180 LPM250 BAR1/2" BSPP12V or 24V1 SpoolDownloadView options
    AMV702B-SC42*(Z)ST180 LPM250 BAR1/2" BSPP12V or 24V2 SpoolDownloadView options
    AMV703B-SC42*(Z)ST180 LPM250 BAR1/2" BSPP12V or 24V3 SpoolDownloadView options
    AMV704B-SC42*(Z)ST180 LPM250 BAR1/2" BSPP12V or 24V4 SpoolDownloadView options
    AMV705B-SC42*(Z)ST180 LPM250 BAR1/2" BSPP12V or 24V5 SpoolDownloadView options
    AMV706B-SC42*(Z)ST180 LPM250 BAR1/2" BSPP12V or 24V6 SpoolDownloadView options
    AMV707B-SC42*(Z)ST180 LPM250 BAR1/2" BSPP12V or 24V7 SpoolDownloadView options

  • 100lpm Manual Control

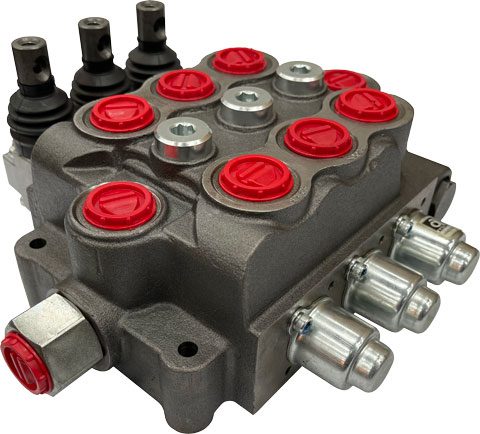

    Akon KVM16 Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Relief Pre-Set to 180 BAR
    • 30 BAR Max Tank Pressure
    Model Code Flow RatePressurePortingDescriptionSpec SheetOptions
    KVM162C100 LPM300 BAR3/4" BSPP2 SpoolDownloadView options
    KVM163C100 LPM300 BAR3/4" BSPP3 SpoolDownloadView options

  • 200lpm Manual Control

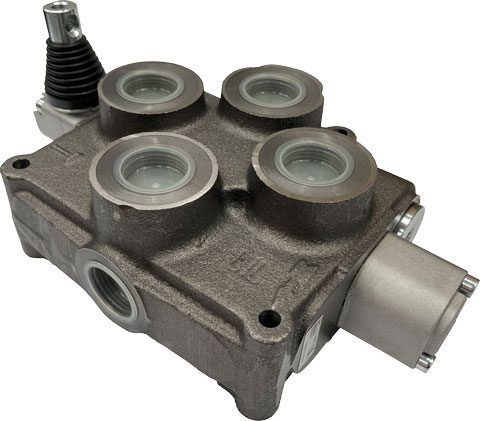

    BLB BM180 Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Relief Pre-Set to 180 BAR
    • 25 BAR Max Tank Pressure
    • 1" BSPP Ports
    Model Code Flow RatePressureWeightDescriptionOptions
    BM180/1-103A1M1200 LPM320 BAR9 KG1 SpoolView options

  • 45lpm Manual Control

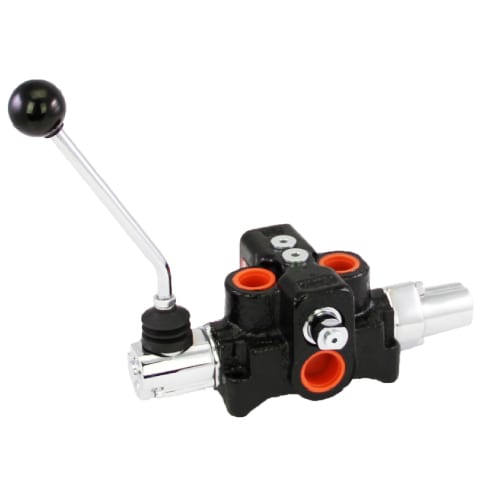

    Brand Hydraulics SDCF Directional Valves
    • Superior Control
    • Varied Configurations Available
    • Cast Iron Construction
    • American made
    Model Code Spool*ControlFlow RatePortingMax PressureSpec Sheet
    SDCF755TM64LF1TMFriction Detent0-22 LPMNPT207 BARDownload
    SDCF755TM64LSTMSpring Centre0-22 LPMNPT207 BARDownload
    SDFC120M124LF1MFriction Detent0-45 LPMUNO207 BARDownload

  • 50lpm Manual Control

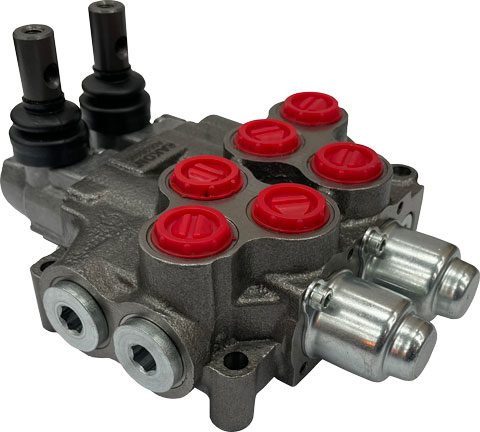

    Akon AMV50 Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Relief Pre-Set to 180 BAR
    • 30 BAR Max Tank Pressure
    Model Code Flow RatePressurePortingWeightDescriptionSpec SheetOptions
    AMV501B-SC1ST150 LPM350 BAR1/2" BSPP3.5 KG1 SpoolDownloadView options
    AMV502B-SC1ST150 LPM350 BAR1/2" BSPP5.9 KG2 SpoolDownloadView options
    AMV503B-SC1ST150 LPM350 BAR1/2" BSPP7.15 KG3 SpoolDownloadView options
    AMV504B-SC1ST150 LPM350 BAR1/2" BSPP8.6 KG4 SpoolDownloadView options
    AMV505B-SC1ST150 LPM350 BAR1/2" BSPP10.65 KG5 SpoolDownloadView options
    AMV506B-SC1ST150 LPM350 BAR1/2" BSPP12.3 KG6 SpoolDownloadView options
    AMV507B-SC1ST150 LPM350 BAR1/2" BSPP13.5 KG7 SpoolDownloadView options

  • 50lpm Electric Control

    Akon AMV50 Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Relief Pre-Set to 180 BAR
    • 30 BAR Max Tank Pressure
    • Coil IP65 Rated
    Model Code Flow RatePressurePortingVoltageDescriptionSpec SheetOptions
    AMV501B-SC14*ST2650 LPM350 BAR1/2" BSPP12V or 24V1 SpoolDownloadView options
    AMV502B-SC14*ST2650 LPM350 BAR1/2" BSPP12V or 24V2 SpoolDownloadView options
    AMV503B-SC14*ST2650 LPM350 BAR1/2" BSPP12V or 24V3 SpoolDownloadView options
    AMV504B-SC14*ST2650 LPM350 BAR1/2" BSPP12V or 24V4 SpoolDownloadView options
    AMV505B-SC14*ST2650 LPM350 BAR1/2" BSPP12V or 24V5 SpoolDownloadView options
    AMV506B-SC14*ST2650 LPM350 BAR1/2" BSPP12V or 24V6 SpoolDownloadView options
    AMV507B-SC14*ST2650 LPM350 BAR1/2" BSPP12V or 24V7 SpoolDownloadView options

  • 80lpm Manual Control

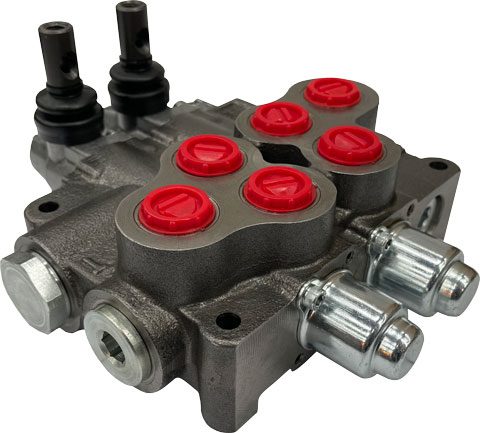

    Akon AMV70 Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Relief Pre-Set to 180 BAR
    • 30 BAR Max Tank Pressure
    Model Code Flow RatePressurePortingWeightDescriptionSpec SheetOptions
    AMV701B-SC1ST180 LPM350 BAR1/2" BSPP P, A & B, T1 / 3/4" BSPP T25 KG1 SpoolDownloadView options
    AMV702B-SC1ST180 LPM350 BAR1/2" BSPP P, A & B, T1 / 3/4" BSPP T27.25 KG2 SpoolDownloadView options
    AMV703B-SC1ST180 LPM350 BAR1/2" BSPP P, A & B, T1 / 3/4" BSPP T29.65 KG3 SpoolDownloadView options
    AMV704B-SC1ST180 LPM350 BAR1/2" BSPP P, A & B, T1 / 3/4" BSPP T211.5 KG4 SpoolDownloadView options
    AMV705B-SC1ST180 LPM350 BAR1/2" BSPP P, A & B, T1 / 3/4" BSPP T214.05 KG5 SpoolDownloadView options
    AMV706B-SC1ST180 LPM350 BAR1/2" BSPP P, A & B, T1 / 3/4" BSPP T216.3 KG6 SpoolDownloadView options
    AMV707B-SC1ST180 LPM350 BAR1/2" BSPP P, A & B, T1 / 3/4" BSPP T218.8 KG7 SpoolDownloadView options

Sectional Valves

  • 265lpm Manual Control

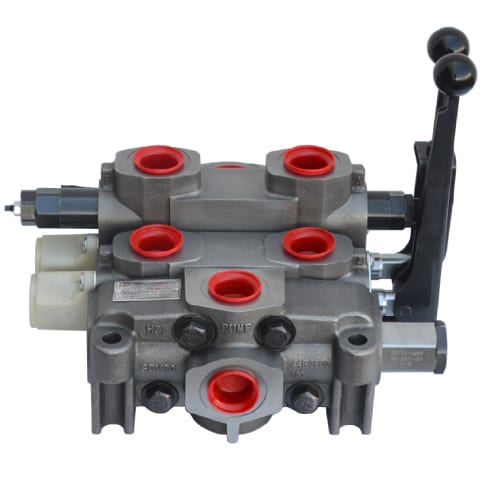

    Hyflow SDV70 Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Available in Parallel & Series
    • Interchangeable with Parker/Commercial
    • VA35 / VG35 / DVA35 / DVG35
    Model Code SectionsFlow RatePressureDescriptionSpec SheetOptions
    SDV70/11 Spool265 LPM241 BARAdj. Main Relief, Low-Boy Parallel Work Sections.DownloadView options
    SDV70/22 Spool265 LPM241 BARAdj. Main Relief, Low-Boy Parallel Work Sections.DownloadView options
    SDV70/33 Spool265 LPM241 BARAdj. Main Relief, Low-Boy Parallel Work Sections.DownloadView options
    SDV70/44 Spool265 LPM241 BARAdj. Main Relief, Low-Boy Parallel Work Sections.DownloadView options
    SDV70/55 Spool265 LPM241 BARAdj. Main Relief, Low-Boy Parallel Work Sections.DownloadView options
    SDV70/66 Spool265 LPM241 BARAdj. Main Relief, Low-Boy Parallel Work Sections.DownloadView options
    SDV70/77 Spool265 LPM241 BARAdj. Main Relief, Low-Boy Parallel Work Sections.DownloadView options
    SDV70/88 Spool265 LPM241 BARAdj. Main Relief, Low-Boy Parallel Work Sections.DownloadView options

  • 50lpm Manual Control

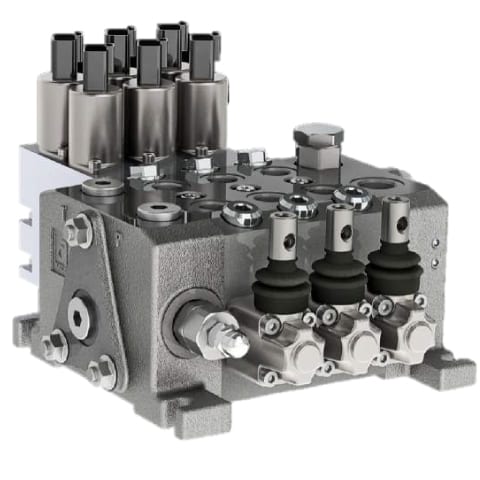

    Akon S50 Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Available in Parallel & Series
    • Load Sensing
    • PWM Coils
    Model Code Flow RatePressureInlet PortOutlet PortWorking PortsDescriptionSpec SheetOptions
    S501A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options
    S502A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options
    S503A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options
    S504A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options
    S505A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options
    S506A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options
    S507A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options
    S508A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options
    S509A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options
    S5010A-ST1SC150 LPM315 BAR3/8" BSPP3/8" & 12" BSPP1/2" BSPPStandard Configuration: Inlet Section with Main RV, Port Relief Cavity (Plugged), Spring Centered ManualDownloadView options

  • 125lpm Manual Control

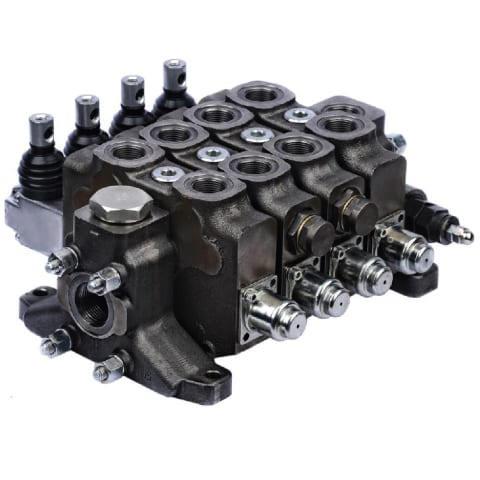

    Akon KV20C Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Relief Pre-Set to 180 BAR
    • 30 BAR Max Tank Pressure
    Model Code Flow RatePressurePortingDescriptionSpec SheetOptions
    KV201C125 LPM315 BAR3/4" BSPP1 SpoolDownloadView options
    KV202C125 LPM315 BAR3/4" BSPP2 SpoolDownloadView options
    KV203C125 LPM315 BAR3/4" BSPP3 SpoolDownloadView options
    KV204C125 LPM315 BAR3/4" BSPP4 SpoolDownloadView options
    KV205C125 LPM315 BAR3/4" BSPP5 SpoolDownloadView options
    KV206C125 LPM315 BAR3/4" BSPP6 SpoolDownloadView options
    KV207C125 LPM315 BAR3/4" BSPP7 SpoolDownloadView options
    KV208C125 LPM315 BAR3/4" BSPP8 SpoolDownloadView options
    KV209C125 LPM315 BAR3/4" BSPP9 SpoolDownloadView options

  • 150lpm Manual Control

    Akon KV20D Directional Valves
    • Cast Ion Contruction
    • Adjustable Inlet Relief
    • Relief Pre-Set to 180 BAR
    • 30 BAR Max Tank Pressure
    Model Code Flow RatePressurePortingDescriptionSpec SheetOptions
    KV201D150 LPM315 BAR1" BSPP1 SpoolDownloadView options
    KV202D150 LPM315 BAR1" BSPP2 SpoolDownloadView options
    KV203D150 LPM315 BAR1" BSPP3 SpoolDownloadView options
    KV204D150 LPM315 BAR1" BSPP4 SpoolDownloadView options
    KV205D150 LPM315 BAR1" BSPP5 SpoolDownloadView options
    KV206D150 LPM315 BAR1" BSPP6 SpoolDownloadView options
    KV207D150 LPM315 BAR1" BSPP7 SpoolDownloadView options
    KV208D150 LPM315 BAR1" BSPP8 SpoolDownloadView options
    KV209D150 LPM315 BAR1" BSPP9 SpoolDownloadView options

Proportional Valves

  • 150lpm Manual/Electric Control

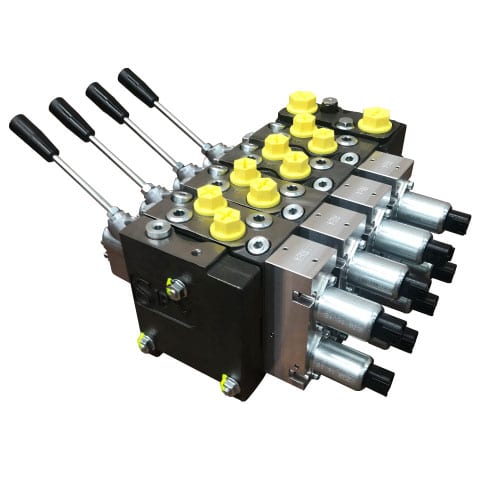

    Akon SPV120 Directional Valves
    • Cast Ion Contruction
    • Variable or Fixed Inlets
    • 420 BAR Max
    • 10 BAR Max Tank Pressure
    Model Code Flow RateCompensated Flow - A & BInlet PortOutlet PortWorking PortsDrain & LS PortsDescriptionSpec SheetOptions
    SPV121150 LPM125 LPM3/4" BSPP3/4" BSPP1/2" BSPP1/4" BSPPStandard Configuration: Variable Pump Inlet, LS Port & Anti-Cav Port Cavities (Plugged), Top Facing Open Loop PWM ControlDownloadView options
    SPV122150 LPM125 LPM3/4" BSPP3/4" BSPP1/2" BSPP1/4" BSPPStandard Configuration: Variable Pump Inlet, LS Port & Anti-Cav Port Cavities (Plugged), Top Facing Open Loop PWM ControlDownloadView options
    SPV123150 LPM125 LPM3/4" BSPP3/4" BSPP1/2" BSPP1/4" BSPPStandard Configuration: Variable Pump Inlet, LS Port & Anti-Cav Port Cavities (Plugged), Top Facing Open Loop PWM ControlDownloadView options
    SPV124150 LPM125 LPM3/4" BSPP3/4" BSPP1/2" BSPP1/4" BSPPStandard Configuration: Variable Pump Inlet, LS Port & Anti-Cav Port Cavities (Plugged), Top Facing Open Loop PWM ControlDownloadView options
    SPV125150 LPM125 LPM3/4" BSPP3/4" BSPP1/2" BSPP1/4" BSPPStandard Configuration: Variable Pump Inlet, LS Port & Anti-Cav Port Cavities (Plugged), Top Facing Open Loop PWM ControlDownloadView options
    SPV126150 LPM125 LPM3/4" BSPP3/4" BSPP1/2" BSPP1/4" BSPPStandard Configuration: Variable Pump Inlet, LS Port & Anti-Cav Port Cavities (Plugged), Top Facing Open Loop PWM ControlDownloadView options
