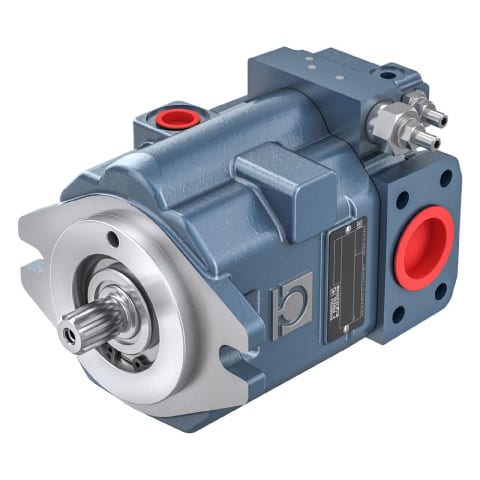

Open Circuit Piston Pumps
Whitelaw Hydraulics offering of Open Circuit Piston Pumps are available with hydraulic load sensing as standard, but now also have electronic load sensing as an option. Our range starts at 11cc/rev and goes up to 90cc/rev, with many more additional options and displacements available on indent supply.
Bondioli 11cc - 21cc
-
9T Spline Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE A 2 Bolt Mounting Flange
- Max Pressure (Peak) 315 BAR
- Speed Range 500-3100 RPM
- Pressure and Flow Compensating
- Weight 10 KGS
- 3/8" BSPP Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HMA1A11LVGLF0 5/8" 9T Spline 11 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A15LVGLF0 5/8" 9T Spline 15 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A21LVGLF0 5/8" 9T Spline 21 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download -
11T Spline Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE A 2 Bolt Mounting Flange
- Max Pressure (Peak) 315 BAR
- Speed Range 500-3100 RPM
- Pressure and Flow Compensating
- Weight 10 KGS
- 3/8" BSPP Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HMA1A11LXGLF0 3/4" 11T Spline 11 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A15LXGLF0 3/4" 11T Spline 15 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A21LXGLF0 3/4" 11T Spline 21 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download -
13T Spline Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE A 2 Bolt Mounting Flange
- Max Pressure (Peak) 315 BAR
- Speed Range 500-3100 RPM
- Pressure and Flow Compensating
- Weight 10 KGS
- 3/8" BSPP Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HMA1A11L9GLF0 7/8" 13T Spline M6 Female Thread 11 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A15L9GLF0 7/8" 13T Spline M6 Female Thread 15 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A21L9GLF0 7/8" 13T Spline M6 Female Thread 21 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download -
3/4" Keyed Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE A 2 Bolt Mounting Flange
- Max Pressure (Peak) 315 BAR
- Speed Range 500-3100 RPM
- Pressure and Flow Compensating
- Weight 10 KGS
- 3/8" BSPP Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HMA1A11LEGLF0 3/4" Keyed M6 Female Thread 11 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A15LEGLF0 3/4" Keyed M6 Female Thread 15 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A21LEGLF0 3/4" Keyed M6 Female Thread 21 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download -
7/8" Keyed Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE A 2 Bolt Mounting Flange
- Max Pressure (Peak) 315 BAR
- Speed Range 500-3100 RPM
- Pressure and Flow Compensating
- Weight 10 KGS
- 3/8" BSPP Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HMA1A11LJGLF0 7/8" Keyed M8 Female Thread 11 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A15LJGLF0 7/8" Keyed M8 Female Thread 15 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download HMA1A21LJGLF0 7/8" Keyed M8 Female Thread 21 CC/REV 250 BAR 3100 RPM 1" C61 Metric 3/4" C61 Metric Download

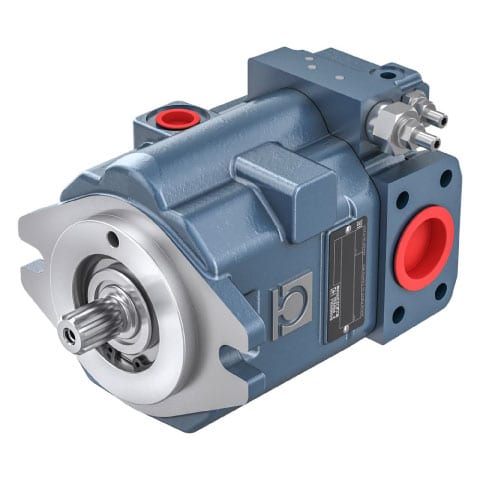

Bondioli 28cc - 44cc
-
15T Spline Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350-320 BAR
- Speed Range 500-3400 RPM
- Pressure and Flow Compensating
- Weight 15-16 KGS
- 9/16" UNO Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HPA3028LB1NLF0 1" 15T Spline M8 Female Thread 28 CC/REV 280 BAR 3400 RPM 1.5" C61 Metric 1" C61 Metric Download HPA3037LB1NLF0 1" 15T Spline M8 Female Thread 37 CC/REV 250 BAR 3200 RPM 1.5" C61 Metric 1" C61 Metric Download HPA3044LB1NLF0 1" 15T Spline M8 Female Thread 44 CC/REV 250 BAR 3000 RPM 1.5" C61 Metric 1" C61 Metric Download -
7/8" Keyed Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350-320 BAR
- Speed Range 500-3400 RPM
- Pressure and Flow Compensating
- Weight 15-16 KGS
- 9/16" UNO Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HPA3028LB6NLF0 7/8" Keyed 5/16" unc Female Thread 28 CC/REV 280 BAR 3400 RPM 1.5" C61 Metric 1" C61 Metric Download HPA3037LB6NLF0 7/8" Keyed 5/16" unc Female Thread 37 CC/REV 250 BAR 3200 RPM 1.5" C61 Metric 1" C61 Metric Download HPA3044LB6NLF0 7/8" Keyed 5/16" unc Female Thread 44 CC/REV 250 BAR 3000 RPM 1.5" C61 Metric 1" C61 Metric Download -
13T Spline Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350-320 BAR
- Speed Range 500-3400 RPM
- Pressure and Flow Compensating
- Weight 15-16 KGS
- 9/16" UNO Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HPA3028LB9NLF0 7/8" 13T Spline M8 Female Thread 28 CC/REV 280 BAR 3400 RPM 1.5" C61 Metric 1" C61 Metric Download HPA3037LB9NLF0 7/8" 13T Spline M8 Female Thread 37 CC/REV 250 BAR 3200 RPM 1.5" C61 Metric 1" C61 Metric Download HPA3044LB9NLF0 7/8" 13T Spline M8 Female Thread 44 CC/REV 250 BAR 3000 RPM 1.5" C61 Metric 1" C61 Metric Download

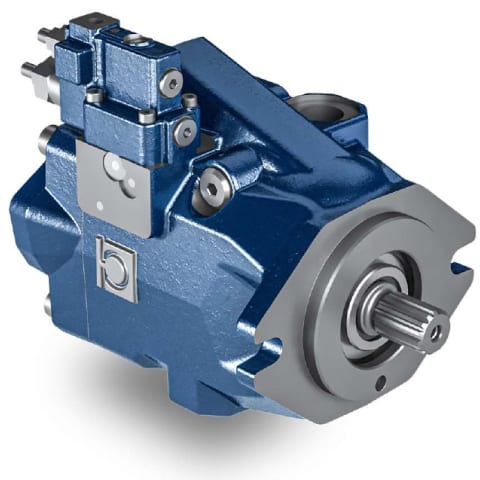

Bondioli 34cc - 65cc
-
15T Spline Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350-320 BAR
- Speed Range 500-2800 RPM
- Pressure and Flow Compensating
- Weight 23-24 KGS
- 3/4" BSPP Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HPA4B034LB1SLF0 1" 15T Spline M8 Female Thread 34 CC/REV 280 BAR 2800 RPM 1.5" C61 Metric 1" C61 Metric Download HPA4B046LB1SLF0 1" 15T Spline M8 Female Thread 46 CC/REV 280 BAR 2800 RPM 1.5" C61 Metric 1" C61 Metric Download HPA4B058LB1SLF0 1" 15T Spline M8 Female Thread 58 CC/REV 250 BAR 2650 RPM 1.5" C61 Metric 1" C61 Metric Download HPA4B065LB1SLF0 1" 15T Spline M8 Female Thread 65 CC/REV 250 BAR 2500 RPM 1.5" C61 Metric 1" C61 Metric Download -
7/8" Keyed Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350-320 BAR
- Speed Range 500-2800 RPM
- Pressure and Flow Compensating
- Weight 23-24 KGS
- 3/4" BSPP Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HPA4B034LB6SLF0 7/8" Keyed 5/16" unc Female Thread 34 CC/REV 280 BAR 2800 RPM 1.5" C61 Metric 1" C61 Metric Download HPA4B046LB6SLF0 7/8" Keyed 5/16" unc Female Thread 46 CC/REV 280 BAR 2800 RPM 1.5" C61 Metric 1" C61 Metric Download HPA4B058LB6SLF0 7/8" Keyed 5/16" unc Female Thread 58 CC/REV 250 BAR 2650 RPM 1.5" C61 Metric 1" C61 Metric Download HPA4B065LB6SLF0 7/8" Keyed 5/16" unc Female Thread 65 CC/REV 250 BAR 2500 RPM 1.5" C61 Metric 1" C61 Metric Download -
13T Spline Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350-320 BAR
- Speed Range 500-2800 RPM
- Pressure and Flow Compensating
- Weight 23-24 KGS
- 3/4" BSPP Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HPA4B034LB9SLF0 7/8" 13T Spline M8 Female Thread 34 CC/REV 280 BAR 2800 RPM 1.5" C61 Metric 1" C61 Metric Download HPA4B046LB9SLF0 7/8" 13T Spline M8 Female Thread 46 CC/REV 280 BAR 2800 RPM 1.5" C61 Metric 1" C61 Metric Download HPA4B058LB9SLF0 7/8" 13T Spline M8 Female Thread 58 CC/REV 250 BAR 2650 RPM 1.5" C61 Metric 1" C61 Metric Download HPA4B065LB9SLF0 7/8" 13T Spline M8 Female Thread 65 CC/REV 250 BAR 2500 RPM 1.5" C61 Metric 1" C61 Metric Download

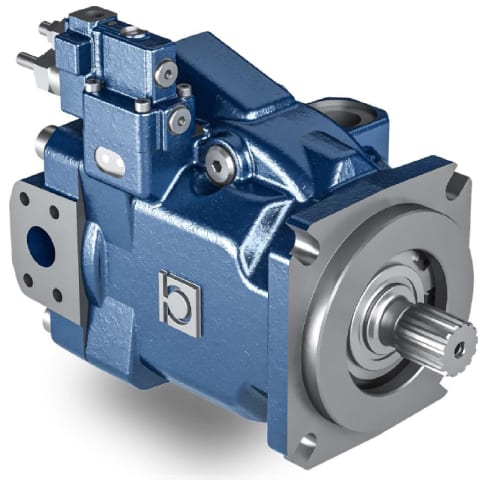

Bondioli/Euroline 70cc - 90cc
-
14T Spline Shaft Piston Pumps
Bondioli Open Loop Load Sense- SAE C 2/4 Bolt Mounting Flange
- Max Pressure (Peak) 350-320 BAR
- Speed Range 500-2500 RPM
- Pressure and Flow Compensating
- Weight 33 KGS
- 1" BSPP Case Drain
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet HPA6070LE1SLF0 1-1/4" 14T Spline M8 Female Thread 70 CC/REV 280 BAR 2500 RPM 2" C61 Metric 1" C61 Metric Download HPA6080LE1SLF0 1-1/4" 14T Spline M8 Female Thread 80 CC/REV 250 BAR 2400 RPM 2" C61 Metric 1" C61 Metric Download HPA6090LE1SLF0 1-1/4" 14T Spline M8 Female Thread 90 CC/REV 250 BAR 2300 RPM 2" C61 Metric 1" C61 Metric Download -

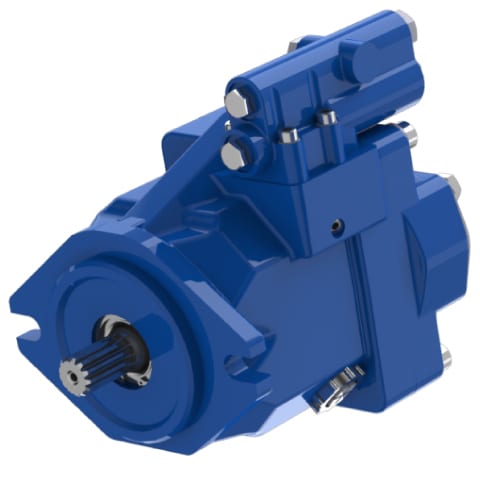

15T Spline Shaft Piston Pumps
Euroline Open Loop Load Sense- Pressure & Flow Compensating
- Max Continuous Pressure 210 BAR
- 250 BAR Peak Pressure
- Rear & Side Port Options
Model Code Shaft Displacement Cont. Max Pressure Max. Speed Suction Port Pressure Port Spec Sheet PVC1.85RPD 1" 15T Spline 85 CC/REV 210 BAR 2000 RPM 2" C61 Metric 1" C61 Metric Download
