Gearboxes

Hydraulic gearboxes are a reliable and effective solution for power transmission and motion control, suitable for many types of mobile vehicles and equipment. Our gearbox offerings include the highly robust and American made Heco product which can be custom built to suit many applications. Gearboxes can be provided with or without motors to once again suit the customers needs.

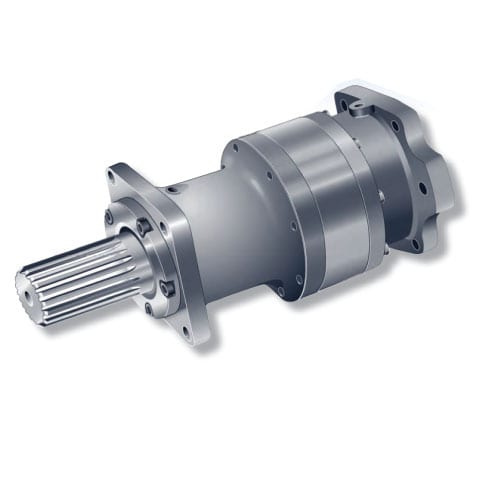

Slimline Planetary

  • Model 16 3,390nm Torque

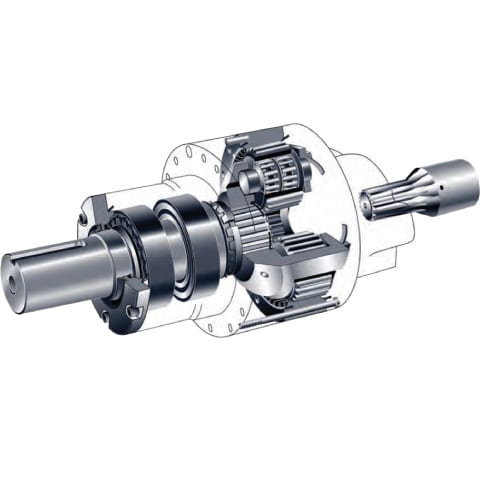

    Heco Planetary Gearbox
    • Multiple Output Shaft Options
    • SAE A, B & C Motor Mounts
    • Different Sungears for Motor Shafts
    • 30,000 in-lbs of Cont. Torque
    Model Code Mounting FlangeOutput ShaftMotor AdaptorRatioSpec SheetOptions
    16FF1-05-7Front2-1/4" Keyed Shaft4 Bolt SAE B5.2 : 1DownloadView options
    16CF1-05-7Centre2-1/4" Keyed Shaft4 Bolt SAE B5.2 : 1DownloadView options
    16AF1-05-7Large Middle2-1/4" Keyed Shaft4 Bolt SAE B5.2 : 1DownloadView options

  • Model 16 Double 3,390nm Torque

    Heco Planetary Gearbox
    • Multiple Output Shaft Options
    • SAE A, B & C Motor Mounts
    • Different Sungears for Motor Shafts
    • 30,000 in-lbs of Cont. Torque
    Model Code Mounting FlangeOutput ShaftMotor AdaptorRatioSpec SheetOptions
    16DFF1-027-7Front2-1/4" Keyed Shaft4 Bolt SAE B27.1 : 1DownloadView options
    16DCF1-027-7Centre2-1/4" Keyed Shaft4 Bolt SAE B27.1 : 1DownloadView options
    16DAF1-027-7Large Middle2-1/4" Keyed Shaft4 Bolt SAE B27.1 : 1DownloadView options

  • Model 25 9,600nm Torque

    Heco Planetary Gearbox
    • Multiple Output Shaft Options
    • SAE A, B, C & D Motor Mounts
    • Different Sungears for Motor Shafts
    • 85,000 in-lbs of Cont. Torque
    Model Code Mounting FlangeOutput ShaftMotor AdaptorRatioSpec SheetOptions
    25FF1-04-1Front2.270" Keyed Shaft4 Bolt SAE B4.8 : 1DownloadView options
    25CF1-04-1Centre2.270" Keyed Shaft4 Bolt SAE B4.8 : 1DownloadView options
    25AF1-04-1Large Middle2.270" Keyed Shaft4 Bolt SAE B4.8 : 1DownloadView options
    25AF1-06-1Large Middle2.270" Keyed Shaft4 Bolt SAE B6.0 : 1DownloadView options
    25CF1-06-1Centre2.270" Keyed Shaft4 Bolt SAE B6.0 : 1DownloadView options

  • Model 25 Double 9,600nm Torque

    Heco Planetary Gearbox
    • Multiple Output Shaft Options
    • SAE A, B, C & D Motor Mounts
    • Different Sungears for Motor Shafts
    • 85,000 in-lbs of Cont. Torque
    Model Code Mounting FlangeOutput ShaftMotor AdaptorRatioSpec SheetOptions
    25DFF1-025-2Front2.270" Keyed Shaft4 Bolt SAE B24.9 : 1DownloadView options
    25DCF1-025-2Centre2.270" Keyed Shaft4 Bolt SAE B24.9 : 1DownloadView options
    25DAF1-025-2Large Middle2.270" Keyed Shaft4 Bolt SAE B24.9 : 1DownloadView options
    25DFF1-031-2Front2.270" Keyed Shaft4 Bolt SAE B31.2 : 1DownloadView options
    25DCF1-031-2Centre2.270" Keyed Shaft4 Bolt SAE B31.2 : 1DownloadView options
    25DAF1-031-2Large Middle2.270" Keyed Shaft4 Bolt SAE B31.2 : 1DownloadView options

Step Ups

  • 25kw Gearboxes

    Bondioli Step Up Gearboxes
    • Refer Data Sheet for More Info
    Model Code Output ShaftPump MountingRatioPowerSpec Sheet
    6073.300.0331-3/8" 6 Tooth FemaleDIN Group 2/33 : 125 KWDownload

  • 68kw Gearboxes

    Hansa Step Up Gearboxes
    • Refer Data Sheet for More Info
    Model Code Output ShaftPump MountingRatioPowerSpec Sheet
    97601-7/151-3/8" 6 Tooth Male2 Bolt SAE B3.8 : 168 KWDownload

European Planetary

  • Planetary Wheel Drive

    Euromat Wheel Drive
    • Refer Data Sheet for More Info
    Model Code Mounting FlangeMotor AdaptorRatioSpec Sheet
    AGR212WGDF17PDA2-13D3Wheel Mount2 Bolt SAE A17 : 1Download
    AGR212WGDF17PDA2-13D3FBWheel Mount2 Bolt SAE A17 : 1Download
    AGR212WGDF23PDA2-13D3Wheel Mount2 Bolt SAE A23 : 1Download
    AGR212WGDF23PDA2-13D3FBWheel Mount2 Bolt SAE A23 : 1Download

European Reduction

  • European Reduction

    Inc. Motor, Brake, Hub
    • Refer Sales Dept. for More Info
    Model Code Description
    C40.4104.0Hub Drive including Integrated Motor + Brake - Refer Sales Dept. for details
    I12.3001.0Hub Drive including Integrated Motor + Brake - Refer Sales Dept. for details
